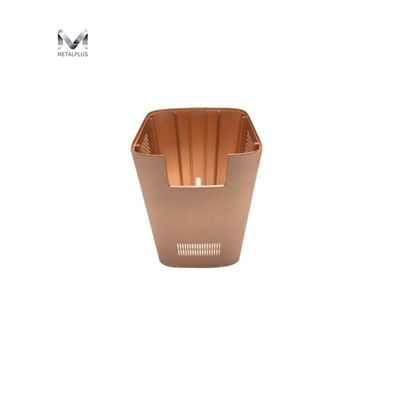

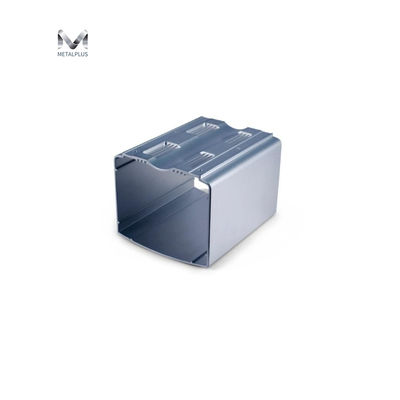

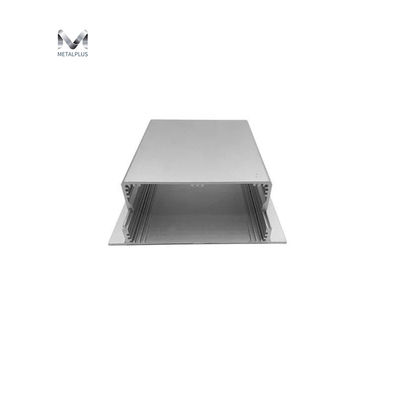

60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile

60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile

Großes Bild :  60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile

Produktdetails:
Zertifizierung: SONCAP, ISO, RoHS, TUV
Dokument: Produktbroschüre PDF
Zahlung und Versand AGB:
Min Bestellmenge: 500
Preis: 1
Kontakt
Ausführliche Produkt-Beschreibung
Legierung: 6063 Temperament: T3-T8
Oberflächenbearbeitung: Anodische Oxidation Oberflächenbehandlung: Anodisierung/Pulvermalerei
Poliertyp: Chemische/mechanische Polsterung Zugfestigkeit: ≥ 160 mPa (T5), ≥ 205 MPa (T6)
Ertragsfestigkeit: ≥ 110 mPa (T5), ≥ 180 MPa (T6) Verlängerung: ≥ 8%
Maximaler Durchmesser: 350 mm Extrusionskapazität: 6800 Tonne Einheit
Anodierende Linien: 6 Pulverbeschichtungsleitungen: 4
Mitten CNC maschineller Bearbeitung: 12 Stanzmaschinen: 30 (50-100 Tonnen)
Produktionskapazität: 50000PCS /MONTH
Hervorheben:

60 Series Aluminum Audio Amplifier Box

,

ISO9001:2008 Certified Aluminum Audio Amplifier Box

,

Custom Silkscreen Printing Aluminum Audio Amplifier Box

6063 Custom Silkscreen Printing Powder Painted Aluminum Audio Amplifier Box Profile
MetalPlus produces an extensive assortment of top-quality, custom-standardized casings. Our selection of industrial enclosures for electronics includes aluminum profile housings, die-cast aluminum boxes, standard aluminum chassis, rack mount enclosures, and CNC precision machined components.
Key Product Features
  • Alloy options: 6060/6061/6063/6082/6005 etc (T6/T5 available)
  • Custom lengths to meet specific requirements
  • Multiple surface treatments: Mill finish, Anodized, Powder Coated, Wooden Transfer
  • Comprehensive fabrication services: cutting, milling, punching, stamping, drilling, CNC, assembly
  • One-stop service from mold design to final delivery
  • OEM and custom designs welcome
Product Specifications
  • Aluminum top+bottom plate with aluminum case design
  • Ideal for rail transit, new energy, power equipment, meteorological testing, and marine monitoring applications
  • Extruded aluminum frame with die-cast aluminum panels for durability in hostile environments
  • Waterproof design with excellent heat dissipation properties
  • Convenient PCB or chassis mounting via horizontal sliding into inner-grooved body frame
  • Suitable for measuring instruments, industrial control boxes, industrial camera housings, and outdoor WiFi access points
Primary Technical Data
Chemical Composition
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties
Alloy Temper Tensile Strength Yield Strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
  • Custom design services for extruded profiles including CAD drawings and 3D models
  • Professional R&D team for design analysis and optimization
  • One-stop service from product design to final delivery
  • Complete in-house production process control for quality assurance
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 0
Factory Equipment
MetalPlus operates 44 aluminum extrusion lines capable of producing commercial and industrial aluminum profiles with maximum outer diameters of 350mm. Our largest 6800-ton extruder can handle complex industrial profiles up to 600mm in diameter.
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 1
Anodizing Process
Our 6 anodizing lines produce uniform oxidation films with consistent color options including silver, black, gold, champagne, and imitation steel. Custom colors available upon request.
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 2 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 3
Painting Process
Our 4 powder spraying lines use high-quality Gema Switzerland spray nozzles with environmentally friendly paints for strong adhesion and durable color retention.
CNC Machining
  • 12 PRATIC machining centers for complex profile processing
  • Fully automatic Wegoma cutting machines for precision cutting
  • 30 punching machines (50-100 ton capacity)
  • 10 stretch bending machines for precise angle bending
  • 10 milling machines for various plane and groove machining
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 4 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 5 60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 6
Packing and Shipping
Finished products are carefully packaged and undergo strict quality inspection before delivery. Our organized warehouse system ensures accurate product tracking and handling.
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 7
Certifications
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 8
Company History
  • 2004: Recognized Brand of the Building Industry Material Market
  • 2006: ISO9001 Certification
  • 2009: Jiangsu Famous Brand Certificate
  • 2012: Established partnerships with Panasonic and LG
  • 2015: Became supplier for German clients
  • 2017: Developed new baseboard heater products
  • 2019: Partnered with world's largest heater manufacturers
  • 2023: Expanding global distribution network
Notable Projects
Soccer City Stadium, Johannesburg: As the main aluminum supplier for Africa's largest stadium (94,000 seats), we contributed to this landmark project that received widespread acclaim.
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 9
Lobster Trailers: Our collaboration with this Nordic trailer giant demonstrates our ability to optimize designs and manufacturing processes for superior product performance.
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 10
School Furniture Project: Supplied aluminum legs for school desks, helping our client successfully complete their educational facility project.
60 Series ISO9001:2008 Certified Custom Silkscreen Printing Aluminum Audio Amplifier Box Profile 11
