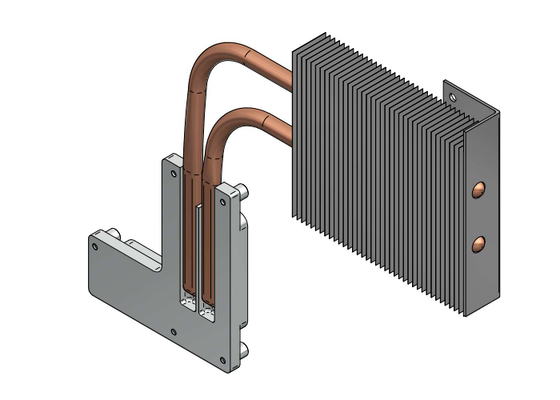

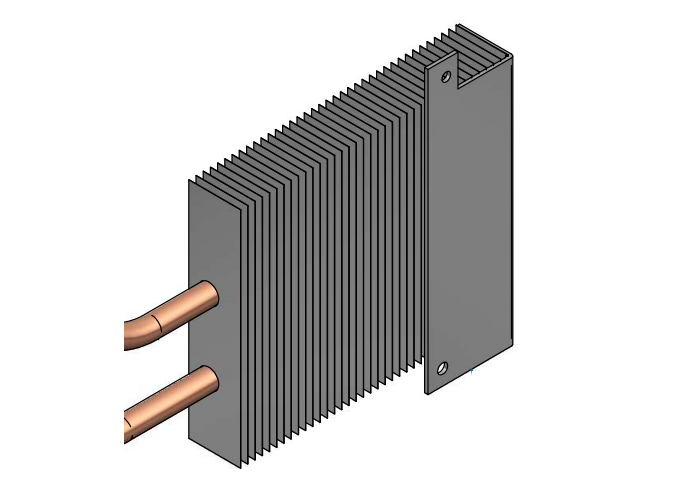

Copper Tube Welding Aluminum Fin Radiator Aluminum Servers Heat Sink
Material:Aluminum
Temper: T4, T5, T6 ,T66
Alloy:6063,6061,6005 ,6060or according to customer’ s choice
Color:clear, satin, bronze, black, golden, silver, other multicolor
Description:
|
Item
|
Aluminum extrusion heat sink with CNC machining
|
|
Material
|
Alloy 6063, 6061 or according to customer’ s choice
|
|
Temper
|
T3, T4, T5, T6
|
|
Surface
|
Anodize (clear, satin, bronze, black, golden, silver, other multicolor) , electrophoresis, powder coating, PVDF coating, wood grain painting, etc.
|
|
MOQ
|
1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
|
|
Profile type
|
Aluminum Extrusion Heatsink which is used in medical equipment ,LED Heat sink ,CPU Cooler , Led Lamp ,Led light , notebook cooler ,and some other filed .
|
|
Processing
|
Aluminum profile extruding ,Precise cutting,Straight rectification,Bending,Drilling,Tapping,Stamping,Pulling,CNC mill, CNC lathe. For precious machining and cutting, length tolerance can be 0.2mm, hole tolerance can be 0.05mm .
|
|
Moulding
|
1. Using our mould, free; 2. Using customer’ s drawing, opening mould fee need to be paid .
|
|
Certificate
|
ISO14001:2004, ISO9001:2000
|
|
Standard
|
Meet the China national standard GB/T6892-2006 and Europe standard EN12020-1,2(2001) and American standard AAMA611-98.
|
|
FOB Port
|
Shanghai, etc.
|
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
|
Alloy
|
Si
|
Fe
|
Cu
|
Mn
|
Mg
|
Cr
|
Zn
|
Ti
|
Impurity
|
Al
|
|
6063
|
0.2-0.6
|
0.35
|
0.1
|
0.1
|
0.45-0.9
|
0.1
|
0.1
|
0.1
|
0.15
|
Rest
|
|
6061
|
0.4-0.8
|
0.7
|
0.15-0.4
|
0.15
|
0.8-1.2
|
0.04-0.35
|
0.25
|
0.15
|
0.15
|
Rest
|
|
6060
|
0.3-0.6
|
0.1-0.3
|
0.1
|
0.1
|
0.35-0.6
|
-
|
0.15
|
0.1
|
0.15
|
Rest
|
|
6005
|
0.6-0.9
|
0.35
|
0.1
|
0.1
|
0.40-0.6
|
0.1
|
0.1
|
0.1
|
0.15
|
Rest
|
2)Mechanical property
|
Alloy
|
Temper
|
Tensile strength
|
Yield strength
|
Elongation
|
|
6063
|
T5
|
≥ 160Mpa
|
≥ 110Mpa
|
≥ 8%
|
|
T6
|
≥ 205Mpa
|
≥ 180Mpa
|
≥ 8%
|
|
6061
|
T6
|
≥ 265Mpa
|
≥ 245Mpa
|
≥ 8%
|
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
